A Complete Information on BrahMos block II & III


Antiship cruise missile / cruise missile for firing at ground targets. Analogue of the domestic cruise missile "Yakhont" / "Onyx"development NGOs "Engineering" (OKB-52 Chelomei) produced and develop for different platforms Russian-Indian joint venture "BrahMos Aerospace Pvt. Ltd." (Formed of 12.02.1998). In 1999, work began on the complex in the adjacent construction department (eg, NGO "Spark"). First model rocket shown at MAKS-2001. BrahMos missile tests commenced no later than 2001, and in January 2004 launched their joint production. BrahMos missile sea-based version of the RPC (for surface ships) adopted by the Indian Navy in 2006. Admission to the part of the coastal defense of India's missile systems of land-based began in 2007 is expected to adopt a different version of the missile (by stationing) - land-based (wheel conveyor with TPK vertical launch, put into service), air variant (carriers - Su-30MKI and dr.samolety IAF) system for ships (adopted for use) and submarines of the Indian Navy. The Indian side is developing a complex control system. Part of components for missile BrahMos produces NGOs "Strela" (Orenburg, production of missiles). The possibility of joint production as of 2009 are estimated at PKR 200 per year (2005-2006 - 100 pieces per year). The complex is proposed for export. Many characteristics are identical RCC "Yakhont" / "Onyx" .




Launch of BrahMos block III at the site Pokharan in Rajasthan, 18/11/2013 (photo - the Ministry of Defence of India Via http://ria.ru ).


PKR BrahMos / "Yakhont" MAKS-2003 (photo - Ilya Cedars, http://www.vpk-news.ru ) .

Part of the work was carried out on a range of BrahMos NGOs Mashinostreniya and subcontractors under the ROC "Alliance". In particular, the NGO "Spark" and JSC "Vanguard". Internal designation missiles NGOs Engineering - SK310.

Launcher - transport-launch canister (TPC) used on different platforms (sm.Modifikatsii below). In other terms - TPK - the case of transport and starting system. Serially produced of "Vanguard" (g.Safronovo, as of 2010).
Launch angle - from 15 to 90 degrees (ie, including the vertical start) - stationary polygons PU vertical launch, the rocket was used in the tests, starting with the first start-up;


The first test launch of the missile BrahMos, 12.06.2001 (photo from the archive alys, http://forums.airbase.ru )

- Inclined PU Navy ships - launcher with two inclined container (TPK) with an external protective cover; PU prototype was used as the stationary polygon inclined PU at the first stage of testing missile BrahMos; PU is used on destroyers of the Indian Navy.


Stationary polygons inclined PU. The second test launch BrahMos - Test D-02 of 28.04.2002 ( http://forum.keypublishing.com ).


The initial view of BrahMos missile launchers destroyer Rajput Indian Navy ( http://forums.airbase.ru ) Modified BrahMos missile launcher destroyer Rajput Indian Navy ( http://www.brahmos.com ). PU PKR BrahMos destroyer Rajput Indian Navy (http://trishulgroup.blogspot.com ). Loading TPK with a missile in the ship inclined PU, published in 2004 ( http://forum.keypublishing.com).









- PU vertical launch for Navy ships / UKSK - package of 8 TPK;


Layout launcher vertical launch missile BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ). WPK with shock absorber to install vertical launch destroyer Ranvir, test D-18 missile BrahMos, the Bay of Bengal Orissa. 15.01.2009 (http://www.youtube.com )



- 650 mm TA - launcher - according to media reports may have conducted or are being worked such variant missile launch from submarines (to Lenta.Ru, 2007). - PU vertical launch submarine (Project) - a package of 8 TPK;


Layout launcher vertical launch missile BrahMos submarine c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).

- Self-propelled PU (STC) on the chassis "Tatra" with wheel formula 12 x 12 chassis manufactured in India under license SPU is made the same in India;


Self-propelled PU BrahMos complex on the test polgoine, preparation of the 7th missile tests BrahMos - D-07. 13.06.2004 g (http://forum.keypublishing.com ). Self-propelled PU BrahMos complex at the exhibition of military equipment DefExpo-2006 (photo - Said Aminov, http://pvo.guns.ru )









- Aviation PU - mount assembly; The exhibition shows two kinds of launchers.


Ulez suspension and Control aircraft variant PKR BrahMos exhibition MVSV 2010, Moscow (photo - VLAS, http://military.tomsk.ru/forum )

Rocket PJ-10 BrahMos : Design - cruise missile normal aerodynamic scheme with frontal air intake with a central body.



Projection aircraft variant missiles BrahMos - SC-310A (author - Diletant2010, drawing provided by the author, 2011). Assembling BrahMos missiles in India, photo not later than 2008 ( http://trishulgroup.blogspot.com ). The wings and aerodynamic rudders PKR BrahMos (photo ABL22, http://military.tomsk.ru/forum ).
















Control and Guidance:
Option PKR
 - active-passive radar vectors, a rocket equipped with an active radar seeker and onboard digital computer. Inertial measurement unit and sensors corner skorostidlya missile control system established in NGOs Electromechanics (Miass).
Target detection range homing in active mode - 50 km (according to some sources)
Target detection range class "cruiser" GOS in active mode - 75-77 km
Target detection range homing in active mode, the maximum - 1 km
Sector detection GOS - + -45 degrees

After detection and capture target radar-guided missiles, homing missile off and "dive" under the lower limit of the zone defense purposes and flies under the control of the inertial system. After the release of the radio horizon line eprvonachalnogo capture target homing is reinstated. Distribution group purposes missiles occurs at the first stage of GOS (for height). At the start of the RCC group in the first stage a group of missiles redistributes the goal of a particular algorithm, eliminating the possibility of a single goal defeat several missiles (if it is not the main goal). Rockets are programmed to commit anti-missile maneuvers. In memory of the onboard digital computer incorporated electronic "portraits" of the main potential enemies ships and detection logic for constructing ship orders to select the main goal.


Active radar homing PKR BrahMos ( http://trishulgroup.blogspot.com ). GOS RCC "Yakhont" in the IMDS-2007 in St. Petersburg (photo - Vitaly Kuzmin, http://vitalykuzmin.net ).



BrahMos block I - option for firing at ground targets appears to be equipped with inertial control system and GOS with guidance radar pictures on purpose. BrahMos block II - has been in the media information about the use of GOS, working in a wide range of frequencies (optical + radar seeker throughout visibility). It is also possible the emergence of modifications with passive radar homing. In tests, the tested 05.09.2010 guidance system and the selection of ground targets, allowing to choose the priority objective of a number of ground objects.


BrahMos block III - in the press release DRDO reported that the missile guidance system uses new algorithms for better targeting system.




Remote control of ship control and Launch Control BrahMos. Published in 2004 ( http://forum.keypublishing.com ).

Engine :
- Front-solid propellant booster placed in the main engine nozzle. Developed by NPO "Iskra" (Perm), chief designer - M.I.Sokolovsky.
The mass of solid propellant rocket motors - about 500 kg - 2 x solid propellant compartment and slip nose fairing developed by NPO "Iskra" (Perm).




RDTT separating nose cone on the slotted layout ( http://www.militaryparitet.com/ ). RDTT separation of the nose cone (Aerospace Technology development NGO "Spark". Presentation. 2008).


- 3D55 on ramjet sustainer stage - developed by KB "Flame" (closed in 2004), the chief designer I.B.Levanov. Development of the engine began in 1982 Draft project - 1983 engine test started in 1987 3D55 - the first national multi-mode ramjet engine with fully adjustable nozzle. Manufacture of motor leads through the "Arrow" (Orenburg). As of 2010, work on ramjet missile NGOs engineering department is 08 "NPO Machine Building" - it is here released a complete package of design documentation for the export version of the ramjet engine 3D55 ( source ).
Thrust - 4000 kg
diameter of the combustion chamber - 640 mm
Dry weight - 200 kg


Engine 3D55 exposure NGOs in engineering at MAKS-2003 (photo - Eugene Erokhin, http://www.missiles.ru ). Works with engine 3D55 missile BrahMos / "Onyx" in the department 08 "NPO Engineering" (MIC Tribune, №11 / 2010). The air intake main engine PKR BrahMos (photo ABL22, http://military.tomsk.ru/forum ). Engine PKR BrahMos (photo ABL22, http://military.tomsk.ru/forum ). engine aircraft variant missile BrahMos exhibition MVSV 2010, Moscow (photo - VLAS, http://military.tomsk.ru/forum )















TTX missiles :
Standard missile BrahMosAviation version of the missile BrahMos (data from the exhibition Aero India 2013)
The length of the WPK8900 mm
Missile length8550 mm
The diameter of the TPC710-720 mm
The diameter of the rocket648 mm
Wingspan1700 mm1700 mm?
Mass of the rocket with TPK3900 kg
Mass of the rocket3000 kg2550 kg
Weight warhead200-250 kg (up to 300 kg according to Indian sources)
The range of
- At low altitude - 120 km
- En-mixed profile - 290-300 km
- 290 km (BrahMos block III)
up to 290 km
Flight speed
- 750 m / s (2.5 M, at a height 14000m)
- 680 m / s (2 M, at a low altitude)
- 2.5-2.8 M / 3500 km / h (Brahmos)
- 2.8 M (BrahMos block 2 LACM)
- Up to 2.8 m
Speed ​​by the end of the work start RDTT2M
The speed of the carrier in the application0.55 - 0.8 M
Flight altitude- Mixed profile - to 14000 m
- At the final stage - 5-15 m
- Mixed profile - to 14000 m
- At the final stage - 5-15 m
The height of the application- 500-9000 m
- "subsidence" - 100-150 m

The maximum angle of attack when maneuvering - up to 15 degrees.
The reaction time of the complex - 4 minutes
The time interval between starts RCC:
- 2-5 with
- 3 (according to the commissioning of 30/01/2014, at UVLM frigate pr.11356 )
Combat rate (UVLM frigate pr.11356 ) - 8 missiles at intervals of 3
Guaranteed shelf life in TPK - 10 years (7 years dr.dannym)
Mezhreglamentny TPK period - 3 years

The missile can use multiple flight profiles:
- Lo-Hi-Lo (mixed profile) - after the start of the rocket climbs 14,000 m m before hitting the target is reduced to a height of 5-15 m.
- Lo-Lo-Lo (low-altitude profile) - altitude - a few tens of meters below the speed, range less.

Warhead types :
- penetration (cumulative?)
- high-explosive (?)
- cassette (?)
- Nuclear (?)


Warhead RCC "Yakhont" / BrahMos NGO Engineering.
Visit the NGO Engineering Indian Defense Minister Anthony Akakkaparimbila ( http://www.npomash.ru ).
Modifications:
BrahMos / BrahMos I - PKR shipborne with oblique PU name variant conditional;

Tests maritime variant PKR BrahMos on the ground stand. Seen shooting fairing ( http://www.npomash.ru )

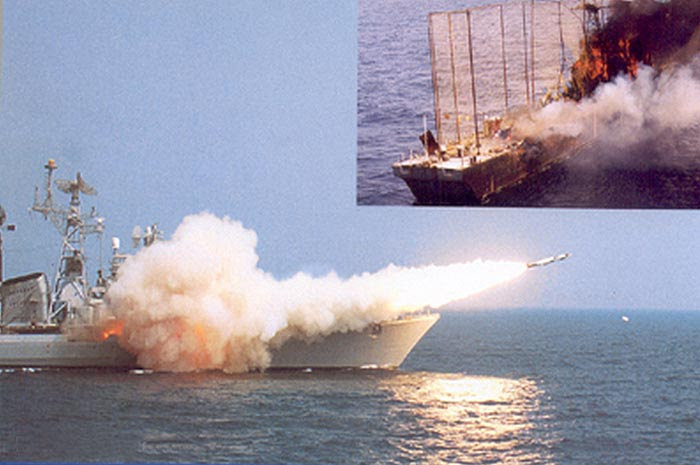

PKR BrahMos test the destroyer Rajput Indian Navy - former BOD pr.61ME ( http://www.npomash.ru ) test-fired from the destroyer Rajput Indian Navy, no later than 2008 ( http://www.brahmos.com ) One same start and struck the ship target, no later than 2008 (http://www.demo14u.com )






- BrahMos block 1 - land-based missile with SPU vertical launch, the name of a conditional option;

Test missiles BrahMos (probably - RCC) from the ground Vertical launching system. In the photo you can see that in the starting mode, fender flares are not disclosed and can not be reset windshield cowl air intake ( http://www.npomash.ru ). The vertical launch missile BrahMos from SPU (frame from the movie "Military Secret", TV shows, RenTV , 23.10.2010 city).


- BrahMos block 1 LACM Sea - the name of the conditional, sea-based KR - LACM - Land Attack Cruise Missile;


BrahMos missile test launch for firing floor ground targets with the Indian Navy destroyer Rajput ( http://www.brahmos.com )

- BrahMos block 2 LACM - KR land-based vertical launch from SPU, LACM - Land Attack Cruise Missile; SPU-based car "Tatra" (production India license), axle 12 x 12 on SDA 3 TPK with missiles, start from a vertical position. Presumably, the missile can be equipped with a nuclear warhead and a new control system for use against ground targets. Pery Start - January 20, 2009 (considered to be not quite successful).


Test missiles BrahMos block 2 class "surface-to-earth" ( http://frontierindia.net ) missile tests BrahMos block 2 land-based, Pokhran test site, 29.03.2009, the ( http://www.brahmos.com )




- BrahMos block 2 (Option II) - the name of the conditional, PKR shipborne with PU vertical launch, the name of a conditional option;


The first launch of the missile BrahMos ship PU vertical launch, the destroyer Ranvir Indian Navy, 21.03.2010, the ( http://frontierindia.net)

- BrahMos block III - a new version of a cruise missile with a range of 290 km and with increased accuracy, is including Navy (in the future). 31.03.2012 of the test, trial rocket launcher with the ground 28 and 30 March announced in the media. The control system used new missiles improved algorithms for guidance. - BrahMos (version III) - ASM for basing submarines with PU vertical launch, the name of a conditional option; April 20, 2010 announced the completion of the development of missiles and missile ready for testing; - BrahMos-A / BrahMos (version IV) - ASM air-based, the name of a conditional option; development of air-launched missiles completed May 12, 2010 The tests will be scheduled with the Su-30MKI (remodeled 2 copies) from 2011 to 2012 The missile is equipped with a new air intake fairing windshield. Added plumage on the nozzle ramjet missile Weight reduced by 500 kg



A sketch of the proposed project location RCC "Yakhont" / BrahMos on the MiG-31, the beginning of the 2000s ( http://lib.ec ). Aviation option PKR BrahMos exhibition MVSV 2010, Moscow (photo - VLAS, http: //military.tomsk.ru/forum )





BrahMos-II
 - promising hypersonic missile, as of 2012 - in development.


Model missiles BrahMos-II on the opening day Aero India 2013, Bangalore, 06/02/2013 (photo - Shiv Aroor, http://livefist.blogspot.ru ).

- BrahMos-M / BrahMos-Mini - reduced modification missile BrahMos, to be set up by 2018


Layouts and missile BrahMos BrahMos-M exhibition DefExpo-2014 of 02.06.2014 ( http://trishul-trident.blogspot.ru/ ).

Carriers :
The destroyer Rajput - upgraded for use BrahMos missile destroyer pr.61EM. On the ship has 2 PU 2 oblique TPK with missiles in the bow in place of the two units of RCC "Termite". 1 refurbished ship - Rajput.


Test missiles BrahMos (LACM) the destroyer Rajput Indian Navy, was not previously 23.02.2005 ( http://www.brahmos.com ) destroyer Rajput D51 on a visit to Singapore in 2010 ( http: //www.defence. PK )





Destroyer Ranvir - modernized for the installation of vertical launch missile BrahMos destroyer pr.61EM. The first test launch missiles - 21.03.2010 city - held in the framework of the Indian Navy destroyer delivery. Planned except destroyer Ranvir convert another ship pr.61ME from the Indian Navy. ie 2 is a perspective of the ship;


Start missile BrahMos from the destroyer Ranvir Indian Navy, 21.03.2010, the ( http://www.defence.pk ) vertical launch missile BrahMos from the ship (frame from the movie "Military Secret", TV broadcast, Ren, 23.10.2010 Mr. .).


Destroyers pr.15A Alpha / INS Kolkata et al. - In the construction of the shipyard Mazagon in Mumbai (scheduled to enter service in 2010). It is planned to equip the installation of vertical launch on 8 missiles. It is planned to build:




PKR BrahMos project and layout destroyer 15A INS Kolkata (below - Photo ABL22 c IMDS-2007, the top - http://nosint.blogspot.com ).

Frigates pr.11356 Talwar - 3 ships of the second series of frigates will be equipped with Vertical launching system with 8 missiles each (plans 2010). Construction of the lead ship series started on CVD "Amber" (Kaliningrad) 24.10.2006, the lead ship of the second series of INS Teg in 2012 and handed over to India October 7, 2012 held a test launch of PKR BrahMos about Goa in India.


Layout frigate pr.11356 installing vertical launch missile BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).

Frigates pr.17A - 30.04.2010 commissioned head frigate Shivalik. Will be equipped with Vertical launching system on 8 missiles each.


Shivalik frigate construction project 17A, 2009 ( http://www.defence.pk )

Small missile ships similar to IRAs pr.1234.7 "Roll forward".


Layout MRK-frigate installing PKR BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).

Submarines with vertical PU 8 missiles - modification pr.677 .

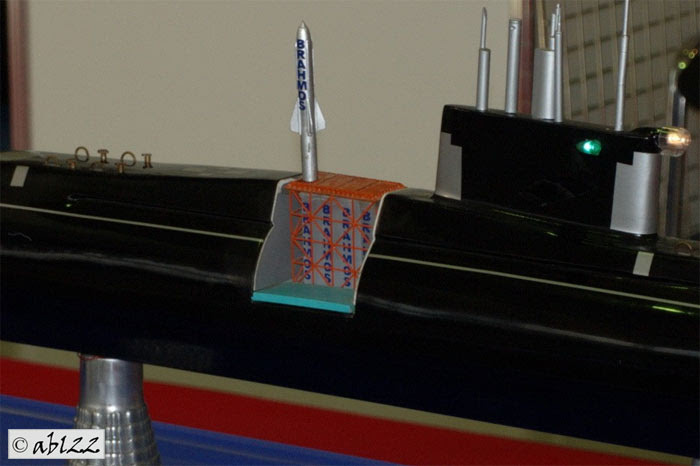

Layout PLRK variant pr.677 installing vertical launch missile BrahMos c exhibition IMDS-2007 (photo ABL22,http://military.tomsk.ru/forum ).


Aviation version of the missile in the future it is planned to use on the Su-30MKI fighters, as well as on the Tu-142 (??) and IL-38 aircraft of the Indian Navy.
- Su-30MKI - in different versions of projects 1 - 3 missiles under the fuselage and under wing (at the exhibition Aero India 2013 stated application 1 rocket)
- Tu-142 - 6 missiles under the wing;
- IL-76 - 6 missiles under the wing;
- Il-38SD - 4 missiles under the center - as of 2010 from placement on the media refused to India;




Accommodation options aviation PKR BrahMos on aircraft carriers Su-30MKI and Il-38SD, exhibition IMDS-2007 and 2009 (photo ABL22,http://military.tomsk.ru/forum ) Accommodation layout PKR BrahMos on the Su-30MKI, airshow Air India , 2011 ( http://defense-update.com ).



Illustrations :

BrahMos missile with folded wings and stabilizers (frame from the movie "Military Secret", TV shows, Ren, of 23.10.2010). The uniformity of the missile " Yakhont "(" Military Secret ", TV shows, Ren, 23.10.2010 Mr. .) The defeat of conditional purpose missile " Yakhont "or BrahMos (" Military Secret ", TV broadcast, Ren, of 23.10.2010)







PKR BrahMos and TPK for her exhibition IMDS-2007 in St. Petersburg (Photo  http://commons.wikimedia.org/wiki/User:One_half_3544 )

Projection options missiles SC-310 / BrahMos and SC-310A BrahMos-A (Figure Stepan Kotrba, 2010, http://blisty.cz ).


Organizational structure:


Orginizatsiya coastal defense batteries using multiple PKR BrahMos, 2007 ( http://www.bharat-rakshak.com/ ).


Status:
 Russia / India

- 2001 June 12 - the first successful launch of PKR BrahMos with ground PU vertical launch. Development of options for shooting at land targets.

The first launch of BrahMos ASM installation with vertical launch, of 12.06.2001 ( http://www.brahmos.com ) The second test launch BrahMos (file photo alys, http://forums.airbase.ru )




- 2004 December - test-firings version of the missile BrahMos - Shourya - for firing at ground targets (polygon Pokharan in the desert of Rajasthan).

- 2005 February 11 - announced the beginning of work on the creation of aircraft options for the CD BrahMos fooruzheniya Su-30MKI Indian Air Force. - 2005 November 22 - Command Indian Army decided to buy one battalion of coastal Mobile PKR BrahMos (4 SPU 60-66 missiles, mobile manual, accessories and educational equipment). Value of the contract, according to released in the Indian open sources, is 275 million. Dollars. Division deployed as part grappirovki Indian troops on the border with Pakistan, expected to be completed in 2007. It is also PKR BrahMos already is in service with the Indian Navy ships - the destroyer Rajpur (BOD pr.61ME former Soviet Navy) - with 2 PU 2 TPK instead of 2 PU CDP "Termite". By the end of 2005, the destroyer must be replaced and the remaining 2 PU "Termite" - he will be a total of 4 x 2 PU BrahMos. Following such re must pass the remaining 4 destroyers of the project in the Indian Navy. Will be equipped with BrahMos ASM as well URO destroyers and frigates pr.15A Banghalor URO pr.17 (licensed modification pr.11356 Russian TFR). Just RCC will be placed on the submarine type "Amur-950" in the case of shipments to India (2005, R & D and models with 10 vertical launchers).

- 2005 November 30 - second test launch missile BrahMos options for shooting at ground targets (polygon Chandipur, Balasore of Orissa).Start manufactured from standard mobile PU-based car "Tatra" Indian production.

The second test version of PKR BrahMos land at the site ITR Chandipur (India). 30.11.2005 Source: Government of India.  Test D-12 version of the KR land BrahMos, polygon Pokharan - on dr.dannym - polygon Chandipur, Balasore of Orissa, 31.05.2006, the (http://www.youtube .com ).



- 2007 June 21 - Delivery of the first battery of missiles BrahMos ground-based variant of RCC for coastal defense (4 SPU). - 2008 August 1 - the media reported on the completion of the development version of the missile BrahMos underwater and air starts. For missile tests will be used Su-30MKI fighters and submarines pr.877EKM Air Force and Indian Navy.

- 2008 September 29 - Russian-Indian intergovernmental commission decided to start R & D KR BrahMos-II . It is reported that the new missile can reach speeds of up to 5M and their development will take about 5-7 years. According to the manufacturer the next 20 years will be produced over 2000 KR BrahMos different modifications. It is expected that the development of the rocket will be completed in 2013

- January 11, 2009 - 2 Su-30MKI Indian Air Force sent to Russia to modernize under the application of BrahMos missiles airborne.Modernization planned to end in early 2010


Test D-18 missile BrahMos with the installation of vertical launch destroyer Ranvir, the Bay of Bengal, Orissa. 15.01.2009 (http://www.youtube.com )
- 2009 January 20 - in the 10-23 not quite successfully passed the first launch of a land version BrahMos - missile BrahMos block 2 at the site Pokharan (Rajasthan). According to the media for the first time tested version of the missile BrahMos, which can carry a nuclear warhead with a new control system. It was almost all the 20 test vertical launch "land" modifications missiles. Total for the Army ordered two regiments missile BrahMos (134 missiles, 10 SPU chassis "Tatra", 4 mobile command posts). Indian navy has ordered 49 BrahMos missiles in RCC and options for strikes against ground targets. In addition, two Indian Su-30MKI sent to Russia with the purpose of conversion for use BrahMos missiles airborne.
- 20 February 2009 - "Indiana DEFENSE" reported that the first three submarines are under construction. First Indian submarines come on line in the next few months. On the PLA will be initially set PU 12 vertical launch with RCC BrahMos, which were later replaced SLBMs.
- 2009 March 4 - ITAR-TASS reported the successful testing of a new version of the missile BrahMos - BrahMos block 2. The tests took place at the site Pokharan in Rajasthan. This version of the missile can hit ground targets with a small area of the reflecting surface.Indian Army ordered 240 missiles of this type. Deliveries are to begin in 2 years. - 29 March 2009 - made ​​the successful tests of the missile BrahMos block 2 ground start firing at ground targets. The tests took place at the site Pokharan in Rajasthan. - 2009 01 December - announced that testing of the missile BrahMos air-based start in 2011 and be completed in 2012 - 2010 March 21 - successful launch of BrahMos with naval installation vertical launch destroyer Ranvir Indian Navy. The missile is launched in a variant of RCC and hit the target - the destroyer Meen. It was 22 BrahMos missile launch. - 2010, March 30 - The Government of India has allocated funds for the purchase of two additional regiments land STC BrahMos block 2 and is likely to work on other modifications missiles in the amount of 2.6 billion USD. - 20 April 2010 - BrahMos missile ready for testing from a submarine of the Indian Navy. - 2010 May 12 - completed the development version of the BrahMos air-based. - 2 September 2010 - according to media reports orders venture BrahMos Aerospace amounted to 13 billion USD. In supplying missile BrahMos interested in Brazil, South Africa, Chile and other countries. Deliveries for export of missiles to be launched after the meet the needs of the Armed Forces of India, which placed an order for 3 billion USD for a period of 6-7 years. - 2010 05 September - at start-11-35 at Chandipur test site, according to media reports, the missile BrahMos the world's first supersonic speed maneuvering committed with the release of a steep dive.


Start land version BrahMos block 2 LACM. Polygon Chandipur, Balasore of Orissa, 05.09.2010, the ( http://livefist.blogspot.com ). Start land version BrahMos block 2 LACM. Polygon Chandipur, Balasore of Orissa, 02.12.2010, ( http://www.youtube.com ). Start land version BrahMos block 2 LACM. Polygon Chandipur, Balasore of Orissa, 02.12.2010, (photo - DRDO, http://tarmak007.blogspot.com ).






- 2011 October 17 - in the media reported on plans to deploy the Indian Army regiment of BrahMos missiles on the border with China in the north-eastern state of Arunachal Pradesh. As of early October 2011, the Armed Forces of India, there are three regiments missiles BrahMos, based in the west of the country near the border with Pakistan. - 2011 November 11 - in the media reported that India's armed forces were armed with the second division (shelves?) c 16 complexes KR BrahMos block 2 LACM.


Start missile BrahMos with Ranvir class destroyers of the Indian Navy, exercises TROPEX 2012, the first of February 2012 (http://www.defence.pk ).

- 2012 04 March - in the Indian Army included the second regiment of ground KR BrahMos. Regiment stationed in the West on the border with Pakistan. Just the personnel of the regiment made ​​test launch of the CD BrahMos on target at the range in Rajasthan. - 31 March 2012 - in the media announced the successful test launches new modification missile BrahMos block III, which took place on 28 and 30 March in Orissa. Modification of ground-based systems equipped with a number of new and used equipment improved algorithm works guidance system.

32nd launch of BrahMos, 29.07.2012, the Start PKR BrahMos frigate INS Teg pr.11356 during maneuvers Indian Navy TROPEX-2013 09.01.2013, published 02.03.2013, the ( http: //livefist.blogspot .com ).



- February 2013 - Publication of the newspaper NGOs Engineering reported that currently commissioned two regiments of BrahMos complexes composed of Indian Army and Navy 5 countries. At the end of 2012 contracts were signed for the supply of aviation version of the missile BrahMos, being successful operation of the embodiment of RCC to equip submarines. ( ist. - Merkulov In .... ). - March 02, 2013 - published photos start PKR BrahMos presumably frigate INS Teg pr.11356 during maneuvers Indian Navy TROPEX-2013. - March 20, 2013 - Bengal Gulf off the coast of Vishapahatnam first time, the launch of the CD BrahMos from under the water. The missile successfully hit its target at a distance of 292 km ( source ).




Underwater BrahMos missile launcher and first submarine-launched BrahMos, 03/20/2013, the ( http://www.livefistdefence.com/ ). The first underwater launch of the CD BrahMos, India, 03/20/2013 (photo BrahMos Corp Via Shiv Aroor, http://livefist.blogspot.ru/ ).











- 2013 May 22 - off the coast of Goa made successful launch of BrahMos, the missile range - 290 km. The missile carried a C-shaped maneuver in height. Start was first produced from the frigate INS Tarkash pr.11356 Indian Navy.

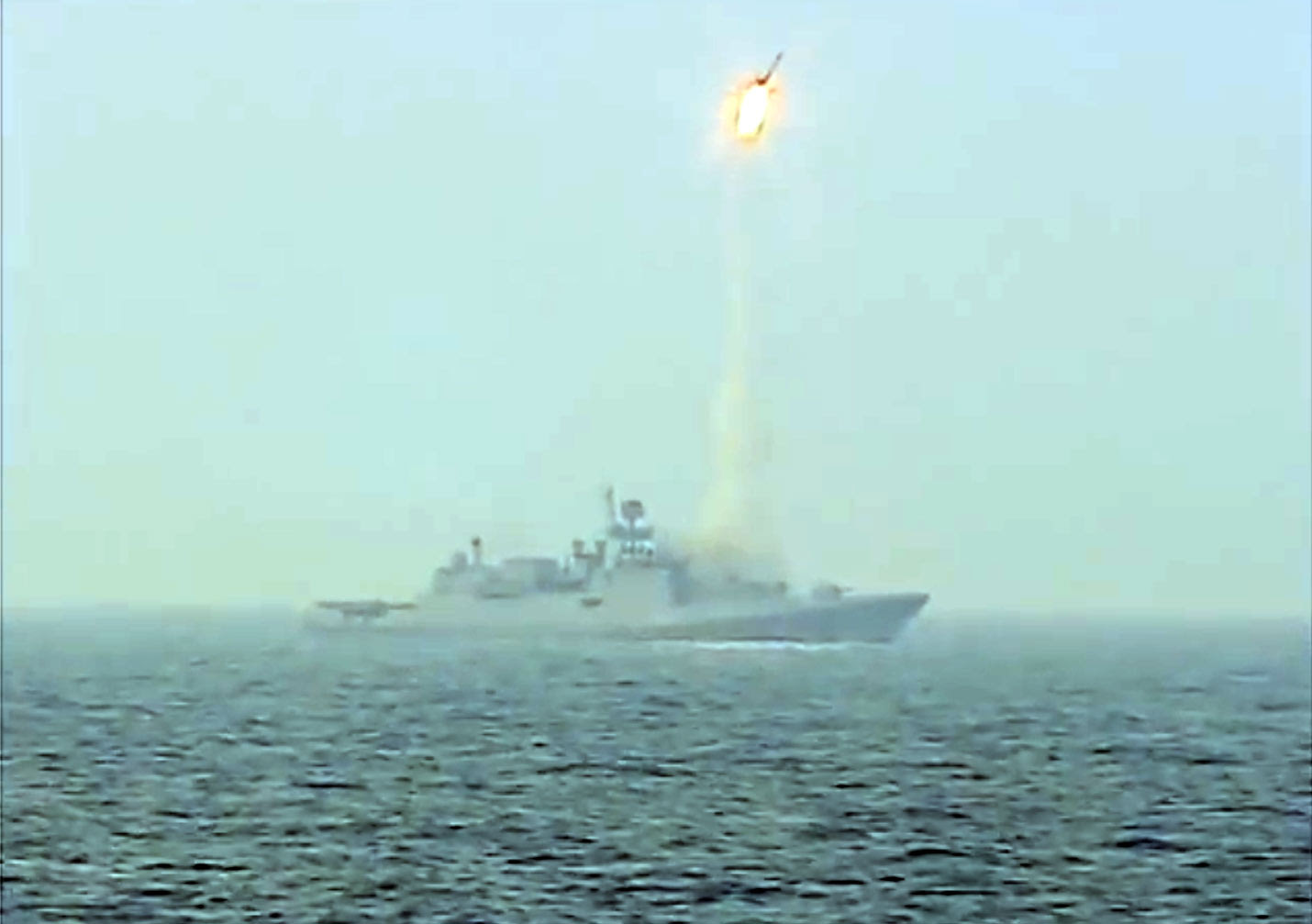

Start missile BrahMos on board the frigate INS Tarkash pr.11356, 22.5.2013, the ( http://www.npomash.ru ). Presumably photo missile launch BrahMos on board the frigate INS Tarkash pr.11356, 22.5.2013, the ( http : //brahmos.com/ ). Start missile BrahMos on board the frigate INS Tarkash pr.11356, 22.5.2013, the ( http://livefist.blogspot.ru ). Start missile BrahMos on board the frigate INS Tarkash pr.11356, 22/05/2013 city ( http://livefist.blogspot.ru ).











- 7 July 2013 - Russia's CEO Alexander Maksichev BrahMos Aerospace said the media that the test aircraft variant of the missile from an aircraft carrier of the Su-30MKI to be held in 2014. In 2013 "to begin the first flight tests until, perhaps, the prototype rocket. And in the next, 2014, we plan to launch the first test with real aircraft missiles, "- said the Russian officer.


The first launch of BrahMos missile launch dual frigate frigate INS Trikand pr.11356 , 30.1.2014, the ( http://www.livefistdefence.com/ ).Double start BrahMos missile frigate frigate INS Trikand pr.11356 , 30/01/2014 g ( http://brahmos.com/ ). Double start BrahMos missile frigate frigate INS Trikand pr.11356 , 30.1.2014, the ( http://www.livefistdefence.com/ ).






- 2014 April 16 - flying aircraft missile BrahMos modifications made in Russia and the rest of the year will go to trial in India."Technological missile has all the ground tests and the whole test cycle. Currently, India conducted testing of the control system aircraft launcher (AAP), which is also ready." Technological missile with real on-board equipment is designed for practicing full-time management system. She just do not start the engine and liquid fuel sustainer stage. At the same time, the missile can confirm that all flight procedures are performed. It is this need for missile "working out math" and the so-called "e-start" on the ground. "Please check the" math "and will be tested in flight products manufactured in Russia and planned to be supplied to us by the end of the year," - said the head of the company. According to Pillai, prior to the flight test aircraft variant "BrahMos" flights will be conducted with the dimensions and layout of the mass of the rocket. This layout will be used for flight-testing the technical characteristics of the aircraft carrier and the separation from the launch aircraft. Discharges from the Su-30MKI dimensions and mass models "BrahMos", which is two to four units is planned for the end of this year.








Test-fired a missile BrahMos block III? polygon Chandipur, Balasore of Orissa, 07.08.2014, the ( http://www.livefistdefence.com/ ). Start missile BrahMos on board IMS Kolkata pr.15A, 14.2.2015, the ( http: // www .livefistdefence.com / ).






Chronology launches family BrahMos (20.03.2013 g):
PPLaunch DateModel / type of missilesLaunch LocationType launcherDescription
112.06.2001RCCpolygon Chandipur, Balasore of Orissa Polygon Vertical launching system the first successful launch of a ground-based vertical launch PU
228.04.2002RCCpolygon Chandipur, Balasore of Orissa Polygon inclined PU successful launch
312.02.2003RCCdestroyer RajputShips inclined PUsuccessful launch of this first launch from the destroyer Rajput
429.10.2003RCCpolygon Chandipur, Balasore of Orissa Polygon inclined PU
509.11.2003rocket firing at ground targetspolygon Chandipur, Balasore of Orissastaffing SPUfirst start with the standard SPU chassis "Tatra"
623.11.2003RCCdestroyer RajputShips inclined PUStart the ship target missile warhead without
713.06.2004rocket firing at ground targets D-07polygon Chandipur, Balasore of Orissa staffing SPU cm. photo with the inscription BrahMos D-07
803.11.2004RCCdestroyer Rajput Ships inclined PU successful launch
9 21.12.2004rocket firing at ground targetsPokharan test site in the desert of Rajasthanstaffing SPU
1013.04.2005RCCdestroyer RajputShips inclined PU Successful launch, the goal - MRK Russian-built. Date - announced the completion of the test version for RCC voruzheniya ships of the Indian Navy
1130.11.2005 rocket firing at ground targets D-11polygon Chandipur, Balasore of Orissa staffing SPU A successful test launch of the second version of land-based missiles.
1231.05.2006rocket firing at ground targets D-12Pokharan test site in the desert of Rajasthanstaffing SPU Test D-12 to ground targets radiocontrast
13?05.02.2007RCC?polygon Chandipur, Balasore of Orissa A successful test launch of the supersonic maneuvering
14?
1505-03-2008rocket firing at ground targets destroyer RajputShips inclined PU successful launch, struck a ground target in complex targets environment
16?
1815-01-2009RCCD-18Destroyer Ranvir (?), Bay of Bengal, Orissa (?)Ships Vertical launching systemSuccessful launch, the first test of the ship PU vertical launchinto the sea;
19?20-01-2009 BrahMos block 2 LACM Pokharan test site in the desert of RajasthanSPU vertical launchStart considered a failure, the first launch of Block II modifications , the target is 53 km from the start, but due to a software glitch in the final stage of the flight was not impressed
19?05.03.2009BrahMos block 2 LACM Pokharan test site in the desert of RajasthanSPU vertical launch Successful launch of the second trigger modifications
(later published a statement soldiers who disputed the successful launch)
20?30.03.2009BrahMos block 2 LACM  Pokharan test site in the desert of Rajasthan SPU vertical launch  Successful launch, struck the target for a distance of 50 km, which is in the group goals
21?30-07-2009BrahMos block 2 LACMPokharan test site in the desert of Rajasthan SPU vertical launchSuccessful launch. Fourth launch Block II in 2009. The tests were conducted Indian Army.
2221-03-2010RCC with advanced software (block 2?)Destroyer Ranvir, the Bay of Bengal, OrissaShips Vertical launching systemSuccessful launch, struck the destroyer Meen; the first test of the ship PU vertical launch into the sea; launch was held in the framework of the Indian Navy destroyer putting Ranvir
23 05.09.2010BrahMos block 2 LACMpolygon Chandipur, Balasore of OrissaSPU vertical launchA successful test launch of the supersonic maneuvers including the vertical plane. Tests were conducted Indian Army. Launch range - 290 km.
2402-12-2010BrahMos block 2 LACM
BrahMos block III on dr.dannym ( source )
D-24polygon Chandipur, Balasore of Orissa SPU vertical launch  Successful launch. Tests were conducted Indian Army. First used by the navigation system development India.
12.08.2011BrahMos block 2 LACMPokharan test site in the desert of Rajasthan?SPU vertical launchSuccessful launch. Tests were conducted Indian Army.
30.11.2011BrahMos block?frigate INS Tegpr.11356Ships Vertical launching systemSuccessful launch. Produced within the test program frigate in the Baltic Sea. Earlier the start of the planned in 2010, but due to delays in the construction of the frigate was postponed to 2011
January-February 2012BrahMos block 2 LACMDestroyer RanvirShips Vertical launching systemSuccessful launch. Start RCC vyponen during maneuvers Indian Navy TROPEX-2012.
04.03.2012BrahMos block 2 LACM Pokharan test site in the desert of RajasthanSPU vertical launch Successful launch. Tests were conducted Indian Army.

plannedRCCsubmarineShips Vertical launching system for submarinesMissile ready for testing according to media reports 20.08.2010
28.03.2012BrahMos block IIIpolygon Bangalore, OrissaSPU vertical launchSuccessful launch, modification with improved algorithm software guidance system, launch range - 290 km, the speed of flight - 2.8 M
30-03-2012BrahMos block IIIpolygon Chandipur, Balasore of OrissaSPU vertical launchsuccessful launch, modification with improved algorithm works guidance system
3229.07.2012BrahMos block IIID-32polygon Chandipur, Balasore of OrissaSPU vertical launchsuccessful launch
3307.10.2012BrahMos block III?D-33frigate INS Tegpr.11356Ships Vertical launching systemSuccessful launch. Produced near the coast of Goa.
3409.01.2013BrahMos block III?D-34frigate INS Tegpr.11356Ships Vertical launching systemSuccessful launch of the implementation of the double maneuver in the form of S, struck the ship-goal at the 1 m above the waterline. Start made off the coast of Andhra Pradesh in the Bay of Bengal. Start RCC vyponen during maneuvers Indian Navy TROPEX-2013.
3503/20/2013BrahMos Underwatersubmarine launch platformprobably ship Vertical launching system for submarinesSuccessful launch, in the Bay of Bengal off the coast of Vishapahatnam. Struck target at a distance 292 km.
3622/05/2013
11-00
BrahMos block III?frigate INS Tarkashpr.11356Ships Vertical launching systemSuccessful launch off the coast of Goa, the missile range - 290 km. The missile carried a C-shaped maneuver in height.
3711/18/2013
10-55
BrahMos block IIIPokharan test site in the desert of RajasthanSPU vertical launchThe successful test of an improved version of the missile. The missile hit a concrete target.
3801/30/2014BrahMos block IIIfrigate INS Trikandpr.11356Ships Vertical launching systemLaunch of two missiles with a minimum interval of 3 seconds.The first missile combat - successfully hit the target. The second rocket - Telemetry - passed on the desired flight path. On start-up media reported 06.02.2014g. Start made off the coast of the state of Karnataka.
3907/04/2014BrahMos block IIIPokharan test site in the desert of RajasthanSPU vertical launchSuccessful launch.
March-April 2014BrahMos-ASu-30MKIAviation PUAs of early February 2014 within a specified time is scheduled to begin throwing tests BrahMos-A missile with aircraft carrier.
4006/09/2014BrahMos block IIIDestroyer "Kolkata" pr.15AShips Vertical launching systemSuccessful launch. The first test of RCC with BrahMos Indian-built destroyer. The tests were in the Arabian Sea near the western coast of India near the base "Karwar" in Karnataka
4108/07/2014BrahMos block IIIpolygon Chandipur, Balasore of OrissaSPU vertical launchSuccessful launch at a distance of 290 km. The missile was tested using the new guidance system using navigation satellites and a new algorithm works.
4202/14/2015BrahMos block III?INS Kolkata pr.15AShips Vertical launching systemSuccessful launch.
Plan - October-December 2014 (February 2014)Plan - 2015 (November 2014)

BrahMos-ASu-30MKIAviation PUPosostoyaniyu at the beginning of February 2014 within a specified time scheduled for flight testing missiles BrahMos-A with the aircraft carrier.


Exports
 :
Brazil
- 2010 September 2 - the media reported about the possible future supply of missiles BrahMos. Kuwait - 2007 - reported an interest to supply missile BrahMos. Malaysia - 2007 - reported the interest in the supply of BrahMos missile. - 2011 - in the requirements for the second batch of aircraft Su-30MKM inherent with the use of these RCC BrahMos. United Arab Emirates: - in 2007 - according to the interest in the supply of missile BrahMos. Chile - 2007 - reported the interest in BrahMos missile deliveries. - 2 September 2010 - the media reported about the possible supply in the future missile BrahMos. South Africa: - in 2007 - according to the interest in the supply of missile BrahMos. - 2 September 2010 - in the media reported Also available in the future missile BrahMos.

No comments:

Post a comment
