Complex BraMos / BrahMos, rocket SK310 / PJ-10 - Updated April 2018

Complex "BraMos" / BrahMos, rocket SK310 / BrahMos PJ-10
ROC "Alliance" Rocket BrahMos block I
missile BrahMos block II
missile BrahMos block III
missile SF-310A / BrahMos-A (aircraft)

Antiship cruise missile / cruise missile for firing at ground targets. An analogue of the domestic cruise missile "Yakhont" / "Onyx"NGO development "Engineering" (OKB-52 Chelomei) produced and develop cross-platform joint Russian-Indian joint venture "BrahMos Aerospace Pvt. Ltd." (Formed of 12.02.1998). In 1999, work began on the complex in the adjacent construction department (for example, the NGO "Spark"). First mock missiles shown at MAKS-2001. Tests BrahMos missiles launched no later than 2001, and launched their joint production in January 2004. BrahMos missile sea-based version of the RPC (for surface ships) adopted by the Indian Navy in 2006. Admission to the part of the coastal defense of India's missile systems of land-based began in 2007

It is planned to adopt a different variants of missiles (by stationing) - land-based (wheel conveyor TPK vertical launch, put into service), air variant (carriers - Su-30MKI and dr.samolety IAF) system for ships (adopted by ) and submarines of the Indian Navy. The Indian side is developing a complex control system. Part of the components for the BrahMos missile produces NGO "Boom" (Orenburg, missile production). The possibility of joint production as of 2009 are estimated at PKR 200 per year (2005-2006 - 100 pieces per year). The complex offered for export. Many characteristics are identical RCC "Yakhont" / "Onyx" .


Start missiles BrahMos block III at the site Pokharan in Rajasthan, 18.11.2013 (photo - Ministry of Defense Via http://ria.ru ).


PKR BrahMos / "Yakhont" MAKS-2003 (photo - Ilya Kedrov, http://www.vpk-news.ru ) .

Part of the work on a range BrahMos conducted Mashinostreniya NGOs and subcontractors under the ROC "Alliance". In particular, the NGO "Spark" and JSC "Avangard". Internal designation Machine-Building NPO missiles - SK310.

Launcher - transport and launch container (TPK) applied on various platforms (sm.Modifikatsii below). In other terms - TPK - the case of transport and starting system. Serially produced JSC "Avangard" (g.Safronovo, as of 2010).
Start angle - of 15 to 90 degrees (i.e., including a vertical start)

- stationary polygon PU vertical launch, the rocket used in the tests, since the first start-up;


The first test launch of the missile BrahMos, 12.06.2001 (file photo alys, http://forums.airbase.ru )


- inclined PU Navy ships - a launcher with two inclined container (TPK) with an external protective casing; PU prototype was used as the stationary polygon PU inclined at the first stage of tests BrahMos missile; PU is used in the destroyers of the Indian Navy.


Stationary polygon inclined PU. The second test launch of BrahMos missile - test D-02, of 28.04.2002 ( http://forum.keypublishing.com ).


The initial view of launchers BrahMos missile destroyer Rajput Indian Navy ( http://forums.airbase.ru )


Modified launcher BrahMos missile destroyer Rajput Indian Navy ( http://www.brahmos.com ).


PU PKR BrahMos destroyer Rajput Indian Navy ( http://trishulgroup.blogspot.com ).


Loading TPK with a missile in the ship inclined PU, published in 2004 ( http://forum.keypublishing.com ).

- PU vertical launch for the Navy / UKSK ships - a package of 8 WPK;


Layout launcher vertical launch missile BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).


TPK base with bumper-to-install vertical launch destroyer Ranvir, the test D-18 BrahMos missiles, the Bay of Bengal, Orissa. 15.01.2009 ( http://www.youtube.com )

- 650 mm TA - launcher - according to media reports may have conducted or conducted study of this option missile launch from submarines (to Lenta.Ru, 2007).

- PU vertical launch submarine (project) - a package of 8 WPK;


Layout launcher vertical launch BrahMos missile submarine c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).

- self-propelled PU (SPU) on the chassis "Tatra" with the wheel formula 12 x 12, the chassis is made in India under license, SPU is made the same in India;


Self-propelled PU BrahMos complex test polgoine, preparation of the 7th BrahMos missile test - D-07. 13.06.2004 g ( http://forum.keypublishing.com ).








Self-propelled PU BrahMos complex exhibition DefExpo-2006 military equipment (photo - Said Aminov, http://pvo.guns.ru ).


Propelled PU BrahMos complex in the stowed position ( http://www.brahmand.com/ ).


SPU BrahMos complex in the starting position (Annual Report 2014 Engineering NGO, Reutov).

- aviation PU - suspension assembly; two kinds of launchers has been shown in exhibitions.


Ulez suspension PU-aircraft variant PKR BrahMos exhibition MVSV 2010, Moscow (photo - VLAS, http://military.tomsk.ru/forum )


Rocket PJ-10 BrahMos :
Design - normal cruise missile aerodynamic configuration with frontal air intake to the central body.


Projection aviation variant missiles BrahMos - SC-310A (author - Diletant2010, drawing provided by the author, 2011).








Assembling the BrahMos missile in India, photos no later than 2008 ( http://trishulgroup.blogspot.com ).






Wings and aerodynamic control surfaces PKR BrahMos (photo ABL22, http://military.tomsk.ru/forum ).


Start nasal fairing marine version BrahMos missiles on show Aero India-2015 (photo - Said Aminov, http://saidpvo.livejournal.com ).


Fuselage cell F2 missile BrahMos version at the show Aero India-2015 (photo - Said Aminov, http://saidpvo.livejournal.com ).




Fuselage cell F3 variant BrahMos missiles on show Aero India-2015 (photo - Said Aminov,http://saidpvo.livejournal.com ).


Aft fuselage variant of BrahMos missiles on show Aero India-2015 (photo - Said Aminov, http://saidpvo.livejournal.com ).

Control and Guidance:
Option ASM
 - active-passive radar homing, a missile equipped with an active radar seeker and the onboard digital computer. Inertial measurement unit and sensors angular skorostidlya missile control systems designed to NGO electromechanics (Miass).
Detection range of the GOS target in the active mode, - 50 kilometers (one for data)
Target detection range class "cruiser" GOS in active mode - 75-77 km
The detection range of the GOS objectives in the active mode, the minimum - 1 km
Sector detection GOS - + -45 degrees

After the detection and capture of the target radar missile guidance system and missile seeker off "dives" under the lower border of the target zone defense and flies under the control of the inertial system. After the release of the radio horizon line eprvonachalnogo capture target seeker is activated again. Distribution purposes missiles group occurs in the first stage of GOS (for height). At the start of the RCC group in the first stage rocket group redistributes the goal of a particular algorithm, eliminating the possibility of defeat one purpose several rockets (if it is not the main goal). The missiles are programmed to commit anti-missile maneuvers. In memory of the onboard digital computer incorporated electronic "portraits" of the main ships of potential adversaries and determination logic of constructing ship orders to select the main goal.


Active radar homing RCC of BrahMos ( http://trishulgroup.blogspot.com ).


GOS RCC "Yakhont" in the IMDS-2007 in St. Petersburg (photo - Vitaly Kuzmin, http://vitalykuzmin.net ).

I of block of BrahMos - option for firing at ground targets seems to be equipped with inertial guidance system and seeker-guided radar pictures on purpose.

II of block of BrahMos - media there was information about the use of GOS, working in a wide range of frequencies (optical + GOS radar apparently). It is also possible to modify the appearance of the passive radar seeker. 05.09.2010 In tests, the tested guidance system and the selection of ground targets, allowing to choose the priority objective of a number of ground objects.
III of block of BrahMos - in a press release DRDO reported that the missile control system uses new algorithms for improved guidance system.




Remote control of ship control and monitoring system launch BrahMos missiles. Published in 2004 ( http://forum.keypublishing.com ).


engine :
- a starting-SRM placed booster in the nozzle main engine. Developed by NPO "Iskra" (Perm), Chief Designer - M.I.Sokolovsky.
Mass SRM - 500 kg

- 2 x SPRM separation and disposal nose fairing NGO development "spark" (Perm).


SRM separation nose cone on a slotted layout ( http://www.militaryparitet.com/ ).


SRM separation nose cone (Rocket and space equipment developed by NPO "Iskra". Presentation. 2008).


- ramjet 3D55 on the sustainer stage - developed by KB "Flame" (closed in 2004), the chief designer I.B.Levanov. Engine Development started in 1982 Draft project - 1983 engine testing began in 1987 3D55 - the first national multi-mode ramjet engine with fully variable nozzle. Engine production is PO "Strela" (Orenburg). As of 2010, work on ramjet missiles to mechanical engineering NGO manages a section 08 "NPO Machine Building" - it is here released a complete package of design documentation for the export version of the ramjet engine 3D55 ( source ).
Link - 4000 kg
diameter of the combustion chamber - 640 mm
Dry Weight - 200 kg


3D55 engine in Mechanical Engineering NGO exposition at MAKS-2003 (photo - Evgeny Erokhin, http://www.missiles.ru ).


Works with 3D55 engine for missile BrahMos / "Onyx" in the department 08 "NPO Machine Building" (Tribune MIC, №11 / 2010).




The air intake main engine PKR BrahMos (photo ABL22, http://military.tomsk.ru/forum ).




Engine PKR BrahMos (photo ABL22, http://military.tomsk.ru/forum ).


Engine aircraft variant BrahMos missiles on display MVSV 2010, Moscow (photo - VLAS, http://military.tomsk.ru/forum )

TTX missiles :
 Standard missile BrahMosAviation variant BrahMos missiles (data from the Aero India 2013 exhibition)
TPK Length8900 mm
missile length 8550 mm
The diameter of the WPK710-720 mm
The diameter of the rocket 648 mm
Wingspan1700 mm1700 mm?
Weight TPK with rocket3900 kg
mass of the rocket3000 kg2550 kg
Weight warhead200-250 kg (up to 300 kg according to Indian sources)
Range of action
- at low altitude - 120 km
- during the flight of a mixed profile - 290-300 km
- 290 km (BrahMos block III)
to 290 km
flying speed
- 750 m / s (2.5 M, at a height 14000m)
- 680 m / s (2 M, at low altitude)
- 2.5-2.8 M / up to 3500 km / h (Brahmos)
- 2.8 M (BrahMos block 2 LACM)
- up to 2.8 m
The speed at the time of completion of the work starting SRM2M
carrier speed at application 0.55 - 0.8 M
flying height- on the mixed profile - up to 14,000 m
- in the final stage - 5-15 m
- on the mixed profile - up to 14,000 m
- in the final stage - 5-15 m
application height - 500-9000 m
- "subsidence" - 100-150 m

The maximum angle of attack at maneuvering - 15 deg.
Complex reaction time - 4 min
The time interval between starts RCC:
- 5.2 to
- 3 (according to the data of starting, the 01/30/2014, frigate UVLM pr.11356 )
Combat rate (UVLM frigate pr.11356 ) - 8 missiles at intervals of 3

Guaranteed shelf life in TPK - 10 years (7 years for dr.dannym)
TPK Mezhreglamentny period - 3 years

The missile can use multiple flight profiles:
- Lo-Hi-Lo (mixed profile) - after the launch of the missile climbs to 14000 m of m target lesion is reduced to a height of 5-15 m.
- Lo-Lo-Lo (low-altitude profile) - altitude - a few tens of meters below the speed, range less.

Types of warheads :
- penetrating (? Cumulative)
- high-explosive (?)
- Tape (?)
- the nuclear (?)


Warhead RCC "Yakhont" / BrahMos NGO Engineering.
A visit to the engineering NGO Indian Defense Minister Anthony Akakkaparimbila ( http://www.npomash.ru ).
Modifications:
BrahMos / BrahMos I - RCC shipborne Slant PU name conditional embodiment;

Tests offshore option PKR BrahMos stand on the ground. It can be seen shooting fairing ( http://www.npomash.ru )

PKR BrahMos test the destroyer Rajput Indian Navy - former BOD pr.61ME ( http://www.npomash.ru )


test-fired from the destroyer Rajput Indian Navy, no later than 2008 ( http://www.brahmos.com )


That same start and struck the ship target, no later than 2008 ( http://www.demo14u.com )

- BrahMos block 1 - land-based missile vertical launch with STC, name conditional embodiment;

Tests BrahMos missile (probably - RCC) of the ground installation of vertical launch. The photo shows that the starting mode is not disclosed wings and rocket fairing is not reset frontal air intake ( http://www.npomash.ru ).


Vertical launch missile BrahMos from SPU (a frame from the film "Military Secret", the TV transmission, Ren, of 23.10.2010).

- BrahMos block 1 LACM Sea - the name of the conditional, sea-based KR - LACM - Land Attack Cruise Missile;


BrahMos missile test launch for firing floor ground targets with a Navy destroyer Rajput India ( http://www.brahmos.com )

- BrahMos block 2 LACM - KR land-based vertical launch from SPU, LACM - Land Attack Cruise Missile; SPU on the basis of car "Tatra" (production of India, the license), wheel formula 12 x 12, on SDA 3 TPK with rockets, starting from the vertical position. Presumably, the missile can be fitted with a nuclear warhead, and a new control system for use against ground targets. Pery Start - January 20, 2009 (considered to be not quite successful).


Tests missile BrahMos block 2 class "ground-ground" ( http://frontierindia.net )


missile tests BrahMos block 2 land-based, Pokhran test site, 29.03.2009, the ( http://www.brahmos.com )

- BrahMos block 2 (variant II) - name conditional RCC shipborne with PU vertical launch, the conditional option name;


The first BrahMos missile launch from the ship PU vertical launch, the destroyer Ranvir Indian Navy of 21.03.2010 ( http://frontierindia.net )

- of BrahMos block III of - a new version of cruise missile with a range of 290 km range and with high accuracy, is including Navy (in the future).31.03.2012 was about missile tests from a ground launcher 28 and 30 March, announced in the media. The missile's control system uses new algorithms for improved guidance.

- BrahMos (embodiment III)
 - for RCC based on submarines with PU vertical launch, the conditional option name; April 20, 2010 announced the completion of the development of missiles and rockets ready for testing;

- BrahMos-400
 (unofficial name) - a variant BrahMos missiles with a 400 km range. The first test conducted
11.03.2017 city

- BrahMos-A / BrahMos (version IV)- RCC air-based, version of the name of the conditional; the development of air-based missiles completed May 12, 2010 The tests will be scheduled with the Su-30MKI (remodeled 2 copies) from 2011 to 2012 The missile is equipped with a new fairing frontal air intake.Alterations carrier Su-30MKI is completed by 90% in the summer of 2016 until the end of 2016 it is planned to produce two test launches of the air version of the missile ( source ). the first successful launch of a Su-30MKI produced 22/11/2017 Mr.
Added plumage on the nozzle ramjet
rocket mass is reduced by 500 kg


A sketch of the proposed project RCC placement "Yakhont" / BrahMos on the MiG-31, the beginning of the 2000s ( http://lib.ec ).




Aviation PKR BrahMos version of the exhibition MVSV 2010, Moscow (photo - VLAS, http://military.tomsk.ru/forum )

of BrahMos-II of
 - promising hypersonic missile, as of 2012 - in development.


Model of a missile BrahMos-II on the opening day Aero India 2013, Bangalore, 06/02/2013 (photo - Shiv Aroor, http://livefist.blogspot.ru ).

- BrahMos-M / BrahMos-the Mini - a smaller modification of BrahMos missile to be set up by 2018


Layouts and BrahMos missile BrahMos-M exhibition DefExpo-2014 of 02.06.2014 ( http://trishul-trident.blogspot.ru/ ).

- BrahMos-800 (unofficial name) - January 20, 2018 the media reported about the plans of the output to the test in the 2019 version of BrahMos missile with a range of up to 800 km ( source ).


Carriers :
The destroyer Rajput - modernized for use BrahMos missile destroyer pr.61EM. On the ship, found 2 of 2 PU inclined TPK with a missile in the bow on the site of two units of RCC "Termite". Converted 1 ship - Rajput.


Tests BrahMos missiles (LACM) the destroyer Rajput Indian Navy, not earlier than 23.02.2005, the ( http://www.brahmos.com )




destroyer Rajput of D51 on a visit to Singapore in 2010 ( http: //www.defence. pk )

Destroyer Ranvir - upgraded for installation of vertical launch missiles BrahMos pr.61EM destroyer. The first test missile launch - 21.03.2010 city - held in the framework of delivery to the Indian Navy destroyer. It is planned in addition to the destroyer Ranvir convert another ship pr.61ME from the Indian Navy. those. 2 is a perspective of the ship;


Start with BrahMos missile destroyer Ranvir Indian Navy of 21.03.2010 ( http://www.defence.pk )


Vertical BrahMos missile launch from a ship (a frame from the film "Military Secret", the TV transmission, Ren, 23.10.2010 Mr. )..

Destroyers pr.15A Alpha / INS Kolkata etc. -. In the building at Mazagon Dockyard in Mumbai (scheduled to enter service in 2010). It is planned to equip the installation of vertical launch 8 missiles. It is planned to build:




PKR BrahMos project and layout destroyer 15A INS Kolkata (bottom - photo ABL22 c IMDS-2007, the top - http://nosint.blogspot.com ).

Frigates pr.11356 Talwar - 3 ships frigates second series is planned to equip the installation of vertical launch 8 missiles each (2010 plan of). Series lead ship construction began in the GCC "Yantar" (Kaliningrad) 24.10.2006, the lead ship of the second series of INS Teg in 2012 handed over to India and 7 October 2012 had test-fired a BrahMos RCC around Goa in India.


Layout frigate pr.11356 with the installation of vertical launch missile BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).

Frigates pr.17A - 30.04.2010 commissioned head frigate Shivalik. It is planned to equip installations vertical launch missiles 8 each.


Construction frigate Shivalik Project 17A, 2009 ( http://www.defence.pk )

Small missile ships similar to IRAs pr.1234.7 "Roll forward".


Layout MRK-frigate installing PKR BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).

Submarines with vertical PU 8 missiles - modification pr.677 .


Layout PLRK variant pr.677 with the installation of vertical launch missile BrahMos c exhibition IMDS-2007 (photo ABL22, http://military.tomsk.ru/forum ).


Aircraft version of the missile is planned to be used on the Su-30MKI fighters, as well as on the Tu-142 (??) and the IL-38 aircraft of the Indian Navy.
- Su-30 MKI - projects in different embodiments 1 - 3 and rockets under the fuselage beneath the wing (at an exhibition Aero India 2013 claims the use of rocket 1);
- Tu-142 - 6 missiles under the wing;
- IL-76 - 6 missiles under the wing;
- Il-38SD - 4 rockets under center - as of 2010 from the placement on the media India refused;




Accommodation options aviation PKR BrahMos air carriers on the Su-30MKI fighters and Il-38SD, exhibition IMDS-2007 and 2009 (photo ABL22,http://military.tomsk.ru/forum )


layout placement PKR BrahMos on the Su-30MKI, Air India air show , 2011 ( http://defense-update.com ).

illustrations :

BrahMos missile with folded wings and fins (frame from the film "Military Secret", the TV transmission, Ren, of 23.10.2010).


A sister missile " Yakhont " ( "Military Secret", the TV transmission, Ren, 23.10.2010 city)


Defeat conventional missile targets " Yakhont " or of BrahMos ( "Military Secret", the TV transmission, Ren, of 23.10.2010)

PKR BrahMos and TPK to her on the IMDS-2007 in St. Petersburg (Photo  http://commons.wikimedia.org/wiki/User:One_half_3544 )

Projections embodiment missiles SC-310 / BrahMos and SC-310A BrahMos-A (Figure Stepan Kotrba, 2010 g., http://blisty.cz ).



Organizational structure:


Orginizatsiya coast defense with multiple batteries PKR BrahMos, 2007 ( http://www.bharat-rakshak.com/ ).


Title:
 Russia / India

- 2001 June 12 - The first successful launch of PKR BrahMos land with PU vertical launch. Development of options for firing at ground targets.

The first launch of PKR BrahMos with the installation of vertical launch, 12.06.2001 ( http://www.brahmos.com )




The second test launch of BrahMos missile (file photo alys, http://forums.airbase.ru )

- 2004 December - the test-firings variant BrahMos missiles - Shourya - for firing at ground targets (Pokharan range in the Rajasthan desert).

- 2005 February 11 - announced the beginning of works on creation of aviation options for the CD BrahMos fooruzheniya Su-30MKI Indian Air Force.

- 2005 November 22 - Command Indian Army decided to purchase one division shore mobile PKR BrahMos (4 SPU 60-66 missiles, mobile manual, auxiliary and training equipment). The cost of the contract, according promulgated in the Indian open press reports, is 275 million. Dollars. deployment of the division as part of grappirovki Indian troops on the border with Pakistan expected to be completed in 2007

Just PKR BrahMos is already in service with the Indian Navy ships - a destroyer Rajpur (BOD pr.61ME former Soviet Navy) - with 2 PU 2 TPK instead of 2 PU RCC "Termite". By the end of 2005, the destroyer must be replaced and the remaining 2 PU "Termite" - a total he will be 4 x 2 PU BrahMos. Following a similar retooling must pass the remaining 4 destroyers of the project in the Indian Navy. It is planned to equip the same RCC BrahMos destroyers pr.15A Banghalor Uro Uro and frigate pr.17 (licensed modification EMM pr.11356 Russian). Just RCC will be placed on the submarine type "Amur-950" in the case of shipments to India (2005, R & D and layouts with 10 vertical launchers).

- 2005 November 30 - second test launch of the missile BrahMos version for firing at ground targets (polygon Chandipur, Balasore of Orissa). Start produced from a mobile launcher at the regular car based on "Tatra" Indian production.

The second test version of PKR BrahMos land at the site ITR Chandipur (India). 30.11.2005 Source: Government of India.


Tests D-12 land version of BrahMos KR, Pokharan landfill - for dr.dannym - polygon Chandipur, Balasore of Orissa, 31.05.2006, the ( http://www.youtube.com ).

- 2007 June 21 - Delivery of the first BrahMos missile batteries in the land-based version of the RPC for coastal defense troops (4 SPU).

- 2008 August 1 - the media reported on the finalization of the BrahMos missiles options for underwater and air starts. To test missiles will be used Su-30MKI fighters and submarines pr.877EKM Air Force and the Indian Navy.
- 2008 September 29 - Russian-Indian intergovernmental commission decided to begin research and development of the Kyrgyz Republic of BrahMos-II ofIt is reported that the new missile can reach speeds of up to 5M and their development will take about 5-7 years. According to the manufacturer in the next 20 years it will produce more than 2,000 BrahMos KR various modifications. It is assumed that the missile development will be completed in 2013

- 2009 January 11 - 2 Su-30MKI Indian Air Force sent to Russia for modernization under the application of BrahMos missiles airborne. Modernization planned to be finished in early 2010,


Test D-18 BrahMos missile vertical launch installation with destroyer Ranvir, Bay of Bengal, Orissa. 15.01.2009 ( http://www.youtube.com )
- 2009 January 20 - in the 10-23 is not completely successfully passed the first launch of a land version of BrahMos - missile BrahMos block 2 at the site Pokharan (Rajasthan). According to media reports the first version was tested BrahMos missile, which can carry a nuclear warhead with a new control system. In total it was about 20 th test vertical launch "land" missile modification. Total for the Army ordered two BrahMos missile regiment (134 missiles, 10 SPU on "Tatra" chassis 4 mobile command posts). Indian Navy has ordered 49 BrahMos missiles in cases of RCC and for strikes against ground targets. In addition, 2 of the Indian Su-30MKI sent to Russia with the purpose of conversion to the use of air-launched missile BrahMos.

- 2009 February 20 - "India's Defense" says that the first three submarines are under construction. The first Indian PLA will become operational in the next few months. In the PLA 12 it will initially set the UE vertical launch with RCC BrahMos, which were later replaced SLBMs.

- 2009 March 4 - ITAR-TASS reported the successful testing of a new version of BrahMos missile - BrahMos block 2. The tests took place at the site Pokharan in Rajasthan. Such missiles variant can infect ground targets with a small area of the reflecting surface. Indian Army ordered 240 missiles of this type. Deliveries are to begin in 2 years.

- 2009 March 29 - was successfully tested BrahMos block 2 ground-launch rocket for firing at ground targets. The tests took place at the site Pokharan in Rajasthan.

- December 1st 2009 - announced that testing of the missile air-launched BrahMos will begin in 2011 and be completed in 2012

- 2010 March 21 - successful launch of BrahMos missile from a ship installation of vertical launch destroyer Ranvir Indian Navy. The missile is launched in a variant of RCC and hit the target - a destroyer Meen. It was the 22 launch of BrahMos missiles.

- March 30, 2010 - Government of India has allocated funds for the purchase of two additional regiments of the Army SPU BrahMos block 2 and is likely to work on other modifications missiles in the amount of 2.6 billion USD.

- 2010 April 20 - of BrahMos missile ready for testing from a submarine of the Indian Navy.

- 2010 May 12 - completed the development of version BrahMos air-launched missiles.

- 2010 September 2 - according to media reports orders venture BrahMos Aerospace amounted to 13 billion USD. The supply of missiles BrahMos interested Brazil, South Africa, Chile and other countries. Deliveries for export of missiles to be launched after the satisfaction of the needs of the Indian armed forces, which placed an order for 3 billion USD for the period of 6-7 years.

- 2010 On September 05 - at start-up in the 11-35 range at Chandipur, according to media reports, the missile BrahMos for the first time in the world to commit supersonic speed maneuvering with the release of a steep dive.


Start land version BrahMos block 2 LACM. Polygon Chandipur, Balasore of Orissa, 05.09.2010, the ( http://livefist.blogspot.com ).


Start land version BrahMos block 2 LACM. Polygon Chandipur, Balasore of Orissa, 02.12.2010, the ( http://www.youtube.com ).


Start land version BrahMos block 2 LACM. Polygon Chandipur, Balasore of Orissa, 02.12.2010 (photo - DRDO, http://tarmak007.blogspot.com ).

- 2011 October 17 - in the media reports about plans to deploy a regiment of Indian Army BrahMos missiles on the border with China in the north-eastern state of Arunachal Pradesh. Just at the beginning of October 2011 in the Indian armed forces, there are three regiments of BrahMos missile systems, based in the west of the country near the border with Pakistan.

- 2011 November 11 - in the media reported that the Indian armed forces were armed with the second division (regiment?) C 16 complexes KR BrahMos block 2 LACM.


Start BrahMos missiles with Ranvir class destroyers of the Indian Navy, exercises TROPEX 2012, the first of February 2012 ( http://www.defence.pk ).

- 2012 March 4 - in the Indian Army troops included the second regiment of ground KR BrahMos. The regiment stationed in the West, on the border with Pakistan. The same personnel regiment BrahMos test launch of the CD produced by the target at the range in Rajasthan.

- 2012 March 31 - in the media announced the successful test launches of new missiles modification BrahMos block III, which took place on 28 and 30 March in Orissa. Modification of land-based, has a number of new hardware systems and uses an advanced algorithm of the guidance system.


32nd launch BrahMos missiles, 29.07.2012, the


PKR BrahMos Start frigate INS Teg pr.11356 during maneuvers of the Indian Navy TROPEX-2013 was published 09.01.2013 02.03.2013, the ( http: //livefist.blogspot .mobi ).

- 2013 February - Publication of NGOs Engineering newspaper reported that currently commissioned two BrahMos regiments complexes within the Land Forces of India and 5 Navy ships of the country. At the end of 2012 contracts were signed for the supply of aviation version of BrahMos missile, a successful work is the embodiment of RCC to equip submarines. East -. Merkulov V .... ).

- 2013 March 2 - published photo start PKR BrahMos frigate INS Teg suspected pr.11356 during maneuvers of the Indian Navy TROPEX-2013.

- 2013 March 20 - in the Bay of Bengal off the coast of the State of Vishapahatnam the first time, the launch of the CD BrahMos from under the water. The missile successfully hit its target at a distance of 292 km ( source ).




Underwater BrahMos missile launcher and the first submarine-launched BrahMos, 20.03.2013, the ( http://www.livefistdefence.com/ ).










The first underwater launch of the CD of BrahMos, India, 20/03/2013 (photo Shiv Via Corp of BrahMos Aroor, http://livefist.blogspot.ru/ ).

- 2013 May 22 - off the coast of Goa successfully launched BrahMos missiles, missile range - 290 km. The missile performed a C-shaped adjustment maneuver. Start was first produced from the frigate INS Tarkash pr.11356 Indian Navy.


Start BrahMos missiles on board the frigate INS Tarkash pr.11356, 05.22.2013, the ( http://www.npomash.ru ).


Presumably photo BrahMos missile launch on board the frigate INS Tarkash pr.11356, 05.22.2013, the ( http://brahmos.com/ ).


Start BrahMos missiles on board the frigate INS Tarkash pr.11356, 05.22.2013, the ( http://livefist.blogspot.ru ).




Start BrahMos missiles on board the frigate INS Tarkash pr.11356, 05.22.2013, the ( http://livefist.blogspot.ru ).

- 2013 July 7 - Russian CEO of BrahMos Aerospace Alexander Maksichev told the media that the test aircraft variant missiles from the aircraft carrier Su-30MKI to be held in 2014. In 2013 "to begin the first flight tests until, perhaps, . And the prototype rocket in the next, in 2014, we are planning the first test launch of a real aircraft missiles, "- said the Russian officer.


Double BrahMos missile launches with a frigate INS Trikand pr.11356 , 01.29.2014, the ( https://www.reddit.com ).


The first start of the double start BrahMos missiles frigate frigate INS Trikand pr.11356 , of 29/01/2014 ( http://www.livefistdefence.com/ ).


Double BrahMos missile launches with a frigate INS Trikand pr.11356 , 01.29.2014, the ( http://brahmos.com/ ).


Double BrahMos missile launches with a frigate frigate INS Trikand pr.11356 , 01.29.2014, the ( http://www.livefistdefence.com/ ).

- 2014 April 16 - flight aircraft missile BrahMos modifications produced in Russia until the end of the year will go for trials in India. "Technological missile has all the ground tests and the whole test cycle. Currently, India conducted testing of aircraft launcher control system (AAP), which is also ready." Technological missile with a real on-board equipment is designed for practicing full-time management. She just do not start the engine and liquid fuel sustainer stage. At the same time, the missile can confirm that all flight procedures are performed. It is this need for a missile "working out mathematics" and the so-called "e-start" on the ground. "Please check the" mathematics ", will then be tested in flight products, This layout will be used for the flight-test specifications carrier aircraft and separation process missiles from the aircraft. Discharges from the Su-30MKI dimensions and mass layouts "BrahMos", which is two to four units, is planned for later this year. This layout will be used for the flight-test specifications carrier aircraft and separation process missiles from the aircraft. Discharges from the Su-30MKI dimensions and mass layouts "BrahMos", which is two to four units, is planned for later this year.








Test launch of BrahMos block III? polygon Chandipur, Balasore of Orissa, 08.07.2014, the ( http://www.livefistdefence.com/ ).




Start BrahMos missiles on board INS Kolkata pr.15A, 02.14.2015, the ( http://www.livefistdefence.com/ ).

- 2015 April - adopted the Army adopted the third BrahMos missile regiment. A ready supply of the fourth regiment for India suzoputnyh troops.


Photo Start the CD BrahMos May 8, 2015 ( source ).


Probably as launch of BrahMos May 8, 2015 ( http://netindian.in ).


Test puskk missile BrahMos block III May 9, 2015 ( http://timesofindia.indiatimes.com ).


Start BrahMos missiles on board INS Kochi pr.15A, 01.11.2015, the ( http://indianexpress.com ).


Start BrahMos-A missile from an aircraft carrier = Su-30MKI, 11.22.2017, the ( source ).


Chronology of the BrahMos missile launches family (20.01.2018 g):
No.PPlaunch DateModel / type missiles launch LocationType of launcherDescription
112.06.2001RCC polygon Chandipur, Balasore of Orissa polygon installation vertical launch the first successful launch of a ground-based PU vertical launch
228.04.2002RCC polygon Chandipur, Balasore of Orissa polygon inclined PU successful start
312.02.2003RCC destroyer RajputShips inclined PUsuccessful launch is the first launch of the destroyer Rajput
429.10.2003RCC polygon Chandipur, Balasore of Orissa polygon inclined PU
509.11.2003rocket for firing at ground targets polygon Chandipur, Balasore of Orissastaffing SPUfirst start with the standard SPU chassis "Tatra"
623.11.2003RCC destroyer RajputShips inclined PUStart the ship target without missile warhead
713.06.2004rocket for firing at ground targets D-07polygon Chandipur, Balasore of Orissa staffing SPU cm. photos labeled BrahMos D-07
803.11.2004RCC destroyer Rajput Ships inclined PU successful start
9 21.12.2004rocket for firing at ground targets Pokharan landfill in the desert of Rajasthanstaffing SPU
1013.04.2005RCC destroyer RajputShips inclined PU Successful start-up, the goal - MRK Russian-built. Date - announced the completion of testing of the RCC for voruzheniya Indian Navy ships
eleven30.11.2005 rocket for firing at ground targets D-11polygon Chandipur, Balasore of Orissa staffing SPU Successful test launch second embodiment of a land-based vehicle.
1231.05.2006rocket for firing at ground targets D-12Pokharan landfill in the desert of Rajasthanstaffing SPU D-12 tests on terrestrial radio-purpose
13 ?05.02.2007RCC? polygon Chandipur, Balasore of Orissa  A successful test launch of the supersonic maneuvering
14 ?
1505.03.2008rocket for firing at ground targets  destroyer RajputShips inclined PU successful launch, struck a ground target in complex targets environment
16 ?
1815.01.2009RCCD-18destroyer Ranvir (?), Bay of Bengal, Orissa (?)shipboard vertical launch settingSuccessful start-up, the first test of the ship's PU vertical launch into the sea;
19 ?20.01.2009 BrahMos block 2 LACM  Pokharan landfill in the desert of RajasthanSPU vertical launchStart considered unsuccessful first modification II Start Block , the target was 53 km from the start site, but due to software malfunction at the final stage of flight has not been struck by
19 ?05.03.2009BrahMos block 2 LACM  Pokharan landfill in the desert of RajasthanSPU vertical launch Successful start-up, start of the second modification
(later appeared declarations of war, which challenged the success of start-up)
20 ?30.03.2009BrahMos block 2 LACM   Pokharan landfill in the desert of Rajasthan SPU vertical launch  Successful start-up, startled target at a distance of 50 km, which is in group goals
21?30.07.2009BrahMos block 2 LACM Pokharan landfill in the desert of Rajasthan SPU vertical launchSuccessful launch. Fourth launch of Block II in 2009. The tests were conducted Indian Army.
2221.03.2010RCC with advanced software (block 2?) destroyer Ranvir, the Bay of Bengal, Orissashipboard vertical launch settingSuccessful start-up, struck the destroyer Meen; the first test of the ship's PU vertical launch into the sea; missile launch was carried out in the framework of putting the Indian Navy destroyer Ranvir
23 05.09.2010BrahMos block 2 LACM polygon Chandipur, Balasore of OrissaSPU vertical launchA successful test launch of the supersonic maneuvering including in the vertical plane. Tests were carried out of the Army in India. launch range - 290 km.

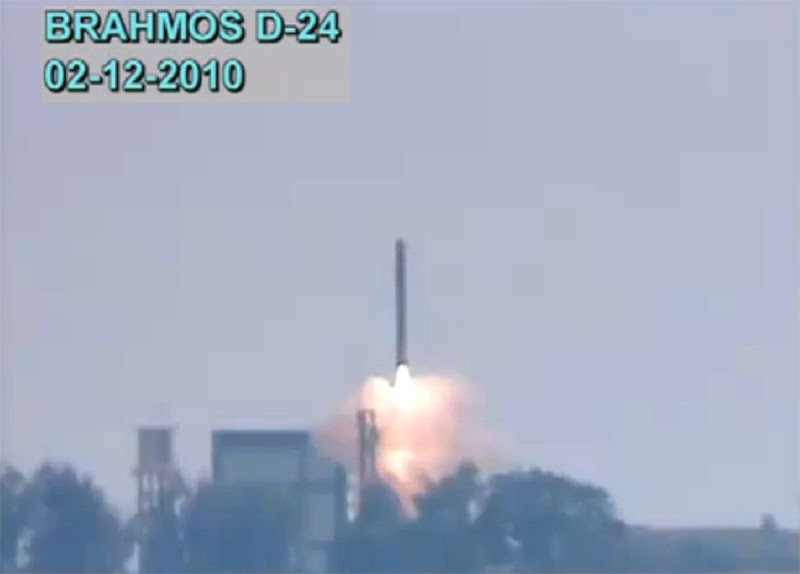

2402.12.2010BrahMos block 2 LACM
BrahMos block III of dr.dannym ( source )
D-24polygon Chandipur, Balasore of Orissa SPU vertical launch  Successful launch. Tests were carried out of the Army in India. First used by the navigation system is the development of India.

 12.08.2011BrahMos block 2 LACM Pokharan landfill in the desert of Rajasthan?SPU vertical launchSuccessful launch. Tests were carried out of the Army in India.
 30.11.2011BrahMos block? frigate INS Tegpr.11356shipboard vertical launch settingSuccessful launch. Produced within the framework of a test program frigate in the Baltic Sea. Previously, the holding of this start-up planned in 2010, but due to delays with the construction of the frigate was postponed to 2011
 January-February 2012BrahMos block 2 LACM destroyer Ranvirshipboard vertical launch settingSuccessful launch. Start ASM vyponen during maneuvers of the Indian Navy TROPEX-2012.
 04.03.2012BrahMos block 2 LACM  Pokharan landfill in the desert of RajasthanSPU vertical launch Successful launch. Tests were carried out of the Army in India.


plannedRCC Submarineshipboard vertical launch setting for submarineRocket ready for testing according to media reports 20.08.2010
 28.03.2012BrahMos block III Bangalore ground, OrissaSPU vertical launchSuccessful launch, modification with an improved algorithm software guidance system, launch range - 290 km, the flight speed - 2.8 m
 30.03.2012BrahMos block III polygon Chandipur, Balasore of OrissaSPU vertical launchsuccessful launch, modification with improved algorithm guidance system
3229.07.2012BrahMos block IIID-32polygon Chandipur, Balasore of OrissaSPU vertical launchsuccessful start
3307.10.2012BrahMos block III?D-33frigate INS Tegpr.11356shipboard vertical launch settingSuccessful launch. Produced near the coast of Goa.
3409/01/2013BrahMos block III?D-34frigate INS Tegpr.11356shipboard vertical launch settingSuccessful implementation start with a double maneuver in the form of S, struck target ship at 1 m above the waterline. Start made off the coast of Andhra Pradesh in the Bay of Bengal. Start ASM vyponen during maneuvers of the Indian Navy TROPEX-2013.
3503/20/2013BrahMos Underwater underwater launch platformprobably install vertical launch ship for submarinesSuccessful start in the Bay of Bengal off the coast Vishapahatnam state. It struck aim at a range of 292 km.
3605/22/2013
11-00
BrahMos block III? frigate INS Tarkashpr.11356shipboard vertical launch settingSuccessful start-up off the coast of Goa, the missile range - 290 km. The missile performed a C-shaped adjustment maneuver.
3718/11/2013
10-55
BrahMos block III Pokharan landfill in the desert of RajasthanSPU vertical launchThe successful test of an improved version of the missile. The missile hit a concrete target.
3801/29/2014BrahMos block III frigate INS Trikandpr.11356shipboard vertical launch settingLaunch of two missiles with a minimum interval of 3 seconds is made for the first time. The first missile combat - successfully hit the target. The second rocket - telemetry - passed on a given flight path. On start-up media reported 06.02.2014g.Start made off the coast of the state of Karnataka.
3907/04/2014BrahMos block III mod (?) Pokharan landfill in the desert of RajasthanSPU vertical launchA successful test launch of the upgraded version of the missile ( source ).
 March-April 2014BrahMos-A Su-30MKIaviation PUAt the beginning of February 2014 within a specified time trial is scheduled to begin throwing BrahMos-A missile from the aircraft carrier.
4009/06/2014BrahMos block III INS Kolkata pr.15Ashipboard vertical launch settingSuccessful start throwing. The first launch of PKR BrahMos with Indian-built frigate. The tests took place in the Arabian Sea near the western coast of India near the base "Karwar" in Karnataka
4108/07/2014BrahMos block III polygon Chandipur, Balasore of OrissaSPU vertical launchSuccessful launch at a distance of 290 km. The missile was tested using the new guidance system using navigation satellites and the new algorithm works.
4202/14/2015BrahMos block III? INS Kolkata pr.15Ashipboard vertical launch settingA successful missile launch.
43
44
45
4609/04/2015BrahMos block III  SPU vertical launchStart is from one of the islands in the Bay of Bengal on the target at the other island ( source )
4708/05/2015BrahMos block III  SPU vertical launchSuccessful 47th launch of the missile at a distance of 290 km with the performance of the maneuver "a nose dive."
4809/05/2015BrahMos block III  SPU vertical launchA successful test launch of Indian Army.
4901/11/2015BrahMos block III? INS Kochi Kolkata class pr.15Ashipboard vertical launch settingSuccessful start-up in the framework of the acceptance tests of the destroyer.Struck maritime target at a distance of 290 km.
5007/11/2015BrahMos block III Pokharan landfill in the desert of RajasthanSPU vertical launchA successful test launch of Indian Army. shots were fired at ground targets at a distance of 290 km.
5127.05.2016 Mr.BrahMos block III?  SPU vertical launchA successful test launch of a ground target.
5211.03.2017 Mr."400 of BrahMos" landfill on o.Abdul Karamground PUThe first launch of BrahMos missiles at a distance of more than 400 km
5321.04.2017 Mr.BrahMos block IV? frigate INS Tegpr.11356shipboard vertical launch settingThe first BrahMos missile launch from a ship on the ground target
54Plan - October-December 2014 (in February 2014)

Plan - 2015 (November 2014)

Plan - September 2016

22.11.2017 Mr.
BrahMos-A Su-30MKIaviation PUAt the beginning of February 2014 in the specified time scheduled for flight testing BrahMos-A missile from the aircraft carrier.

22/11/2017, the first successful launch from the carrier Su-30MKI.


Export
 :
Brazil
- 2010 On September 02 - in the media there was information about possible deliveries of BrahMos missiles future.

Kuwait
- 2007 - according to the interest in the supply of BrahMos missiles.

Malaysia
- 2007 - according to the interest in the supply of BrahMos missiles.
- 2011 - in the requirements for the second batch of aircraft Su-30MKM inherent with the use of these PKR BrahMos.

UAE:
- 2007 - reported the interest in the supply of BrahMos missiles.

Chile
- 2007 - according to the interest in the supply of BrahMos missiles.
- 2010 On September 02 - in the media there was information about possible deliveries of BrahMos missiles future.

SOUTH AFRICA:
- 2007 - reported the interest in the supply of BrahMos missiles.
- 2010 On September 02 - in the media there was information about possible deliveries of BrahMos missiles future.


sources :
"Military Secret", the TV transmission, Ren, 23.10.2010, the
Annual Report of the MIC NPO Machine Building 2010 Reutov, 2011 ( source )
GosNIIAS. Express information. №42 / 2010
India will boost the construction program of three national nuclear submarines. 20.02.2009 ( http://armstass.su/ ).
To Lenta.ru. 2001, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2012 GG
V. Merkulov, Perfil'ev I. Energy-flight. // Tribune MIC. №9 / 2013
NPO Electromechanics 50 years. 2012 ( source ).
JSC "Avangard". Annual report of Open Joint Stock Company "Avangard" in 2010. g.Safronovo, http://www.avangard-plastik.ru , 2011
JSC "Scientific-Production Association" Iskra ". Federal Research and Production Center. Website http://www.biograph.ru , 2011
Rocket and space equipment developed by NPO "Iskra". Presentation. 2008
Shcherbakov V., "BrahMos" in front of "Yakhont" // Military-Industrial Courier. №1 / 2006
Brahmos missile repeat test successful. Website http://kuku.sawf.org , 2009
BrahMos Successfully Steep Dives once again. Website http://drdo.gov.in , 2012
BrahMos-A In Final Integration With Su - 30. 2013 ( source ).
India cruise missile BrahMos test-fired successfully . Website http://www.topnews.in , 2009
Indian Navy demonstrates Brahmos cruise missile with vertical launch. Website http://frontierindia.net , 2010
Indian MIssile Chronology. Website http://www.nti.org , 2011
Naval Open Source INTelligence. Website http://nosint.blogspot.com , 2010
Subramanian TS, Vertical launch of BrahMos successful. // The Hindu, 21.03.2010 Mr.

1 comment:

  1. https://defence.pk/pdf/threads/a-complete-information-on-brahmos-block-ii-iii.367764/

    ReplyDelete
